Slate Roof Replacement

Because everyone’s home and needs are different, build the roof system that is right for you, customized with exclusive features to fit your home for enhanced performance.

Process


Slate is known for beauty and durability, but did you know they are also quite affordable? Slate roofing lasts for decades and comes with a low life cycle cost compared to other roofing material. You can get slate in a variety of styles and colors to fit your personal preference. A high quality slate roof is solid protection for your home and it adds value to your home. It’s likely the last roof you will ever buy.

Steps

1. Tear off and haul away the roof system, including plumber’s flashings and vents. Remove or hammer nails flush with sheeting/roof deck.
2. Inspect entire roof area for dry rot damage in roof deck and replace with new.
3. Inspect entire edge perimeter for dry rot in fascia boards and barge rafters and replace with new.
4.

(a)Solid Sheeting 1) Reanchor any roof deck nails that have popped up; 2) Reanchor per American Plywood Association specifications for shear strength; 3) Reanchor per American Plywood Association specification for shear strength with ring shank nails in high wind areas (Eastman Roofing & Waterproofing recommends following the American Plywood Association guidelines. If you are in a windy area, we recommend ring shank nails).


4.

(b)Space Sheeting Install OSB, OSB with Radiant Barrier or CDX plywood over existing space sheeting, or existing solid sheeting. 1) Install 4’ x 8’ sheets as a backing only for the new roof; 2) Install 4’ x 8’ sheets per American Plywood Association specifications for ‘shear’; 3) Install 4’ x 8’ sheets per American Plywood Association specifications for shear with ring shank nails, ‘high wind areas’.

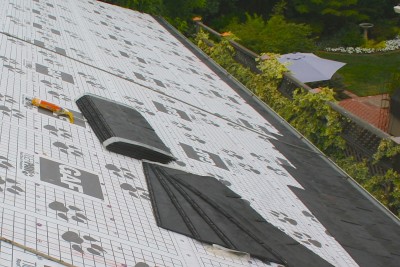

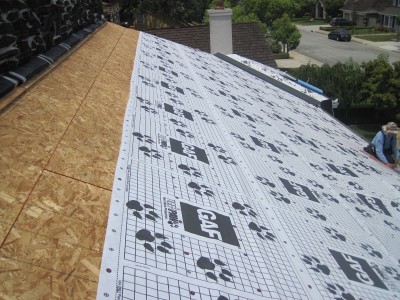

5. Install synthetic underlayment to entire roof area, WinterGuard or MetaLayment self-adhered modified rubber leak barrier to valleys, roof penetrations, and low slope areas.
6. Install new single-ply membrane to crickets and flat roof areas. Tie into walls, fascia, and slates with proper techniques.
7. Tie in at patio cover with rolled sheet metal.

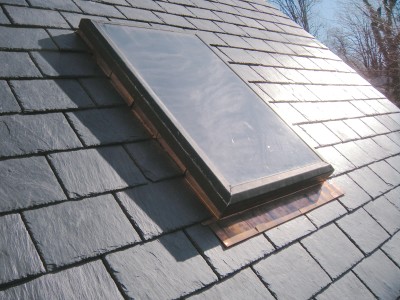

8. Install new VELUX impact-resistant skylight with VELUX flashings over existing openings.

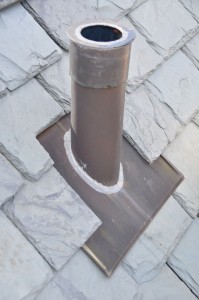

9. Install new plumber’s flashings over pipes fastened and sealed in the roof with urethane sealant. Install pipe sleeve over pipe and/or seal with an EPDM collar.
10. Install new vents over furnace flue, hot water heater flue, kitchen and bathroom fans fastened and sealed in the roof with urethane sealant.
11. Install new drip edge (copper or galvanized, black, brown) at rakes and eave.
12. Paint all galvanized plumber’s flashings and galvanized vents, color to match existing slate color.

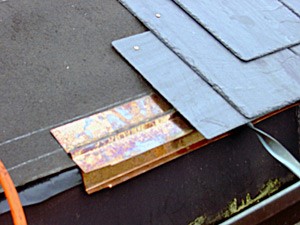

13. Install manufacturer’s starter coarse at eaves.

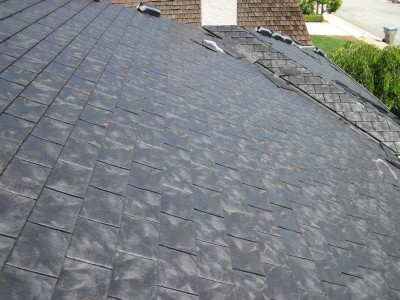

14. Install slates on entire roof area. Use copper nails when installing real slates.

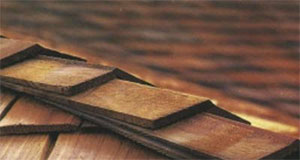

15. Install hip and ridge slates to match the roof slates.
16. Install thermostatically controlled electric attic fans, solar powered fans, baffled ridge vent, O’Hagen/eyebrow vents, etc. for proper attic ventilation.
17. Remove debris and use a magnetic sweep to remove fasteners from driveway and lawn daily.
18. Eastman Roofing & Waterproofing, Inc. has been trained and certified for different types of slate materials. Appropriate manufacturer’s warranty is filled out and sent in to the manufacturer upon completion of the roof.
  • Existing Roof
  • Deck Materials
  • Deck Fastening
  • Deck Protection
  • Flashings
  • Existing Skylights
  • Ventilation

Existing Roof


Choose One
Price
Minimum Code

Existing Roof

Space Sheeting

Removal/Tear Off:Space sheeting needs to have plywood installed if new slates are installed. See “Deck Material” for more information. If the existing roof deck is solid sheathing and is in good condition, it can be re-used.

Deck Materials


Choose One
Price
Minimum Code
Code Plus
Highest Wind Resistance

The roof deck is the structural surface over which the roofing materials are applied. The roof deck should be a smooth, solid surface which will permit the slates to be securely fastened. The roof deck must be at least 3/8" thick plywood, or 7/16" thick non veneer, or nominal 1" thick wood deck. If you apply a slate roof over a deck surface that is unacceptable to the manufacturer and damage occurs as a result, the manufacturer warranty may not be honored.

Deck Material

Solid Sheeting Space Sheeting
Solid Sheeting Space Sheeting

If you have a solid roof deck that is plywood, installed properly, it is ready for the new roof.

Usually 1” by 6” etc. boards are not ‘dry’ when they were installed. When the moisture dries out of the wood, the wood shrinks. If there is too much space between the boards, new OSB or plywood can be installed on top of the existing solid sheeting.

Space sheeting is usually installed for a wood shingle, shake, and some tile roofs. Space or skip sheeting is 50% coverage of the rafters, the plane of the roof/board-(space, board, space). A slate roof has to have a solid deck. Therefore, the space between the boards has to be filled in or covered over with Oriented Strand Board (OSB) or plywood.

"Oriented Strand Board"Oriented Strand Board (OSB) is an engineered wood product formed by layering strands of wood in specific orientations, compressed and bonded together. It is more uniform and cheaper than plywood.

APA OSB Product Data



"Oriented Strand Board with Radiant Barrier"OSB with ‘Radiant Barrier’ reflects up to 97% of the sun’s radiant heat and keeps it from being absorbed into the attic of your home. An aluminum foil/craft paper laminate is attached to the bottom side of the OSB.

TechShield PDF
APA Products Radiant Barrier Product Data

.

"CDX Plywood"CDX plywood: Sheets of veneer with each layer being glued the opposite grain to the one below it. This grade of plywood is used for roof sheeting.

APA Products Plywood Product Data

Deck Fastening


Choose One
Price
Minimum Code
Code Plus
Wind Resistance

Fastening the deck on the roof is required by state and city codes as well as manufacturing requirements such as from the American Plywood Association.

Deck Fastening

Fastening the deck on the roof is required by state and city codes as well as manufacturing requirements such as from the American Plywood Association.

OSB or plywood is applied:
"Protruding nail heads"a) Inspect the entire roof deck before installing new slates. Re-nail protruding roof nails and clean the roof deck to allow for a smooth surface for the installation of the new slates. If existing nails are not flush with the roof deck, it can puncture the roof above.
"Refasten the decking"b) strictly for backing with the edge of the plywood placed anywhere on top of the existing sheeting and fastened to the existing sheeting;
"Refasten the decking"c) nailed directly over rafters below the existing sheeting;
d) nailed directly over rafters below existing sheeting, nailed per American Plywood Association guidelines to give the roof structure sheer strength. This is an added plus for earthquake reinforcement.
Eastman Roofing & Waterproofing recommends following the American Plywood Association guidelines. If you are in a windy area, we recommend ring shank nails.

Deck Protection


Choose One
Price
Minimum Code
Code Plus
Maximum Protection

The installation of underlayment is required by slate manufacturers and recommend by all manufacturers. The type of underlayment varies from the type of material and manufacturer. Not all available underlayments are listed.

Deck Protection

The installation of underlayment is required by slate manufacturers and recommend by all manufacturers. The type of underlayment varies from the type of material and manufacturer. Not all available underlayments are listed.

"15 lb Felt"Tiger Paw™ Roof Deck Protection: Premium-quality roof deck protection should protect your home by providing a critical extra layer of protection between your slates and your roof deck. It helps prevent wind-driven rain (or water from other sources) from infiltrating under your slates and causing damage to your roof structure, or to the inside of your home. In addition, premium-quality roof deck protection will:

  • Help reduce damaging moisture that can become trapped on your roof deck
  • Provide longer-lasting leak protection than conventional “felts”
http://www.gaf.com/Roofing/Residential/Products/Roof_Deck_Protection/TigerPaw

"WinterGuard"WinterGuard: A composite of asphalt polymers formed into a rolled sheet that is sticky. It can stretch and seal around nails driven through it. It meets ASTM D 1970 testing. It is installed at valleys, penetrations, low slope area or the entire roof deck.

Certainteed Winter Guard pdf

Waterproofing Underlayments Warranty pdf

"Metal Layment"Metal Layment: This underlayment can be used for shingle, metal, slate, and mechanically-fastened tile roofs.  It is waterproof and will not rip and seals around nails driven through it.

Certainteed Metal Layment pdf

SOME MANUFACTURER’S REQUIRE THIS PRODUCT FOR A CLASS “A” FIRE RATING
VersaShield® Fire-Resistant Roof Deck Protection: Protect Your Roof From Moisture While Improving Its Fire Resistance With UL Class A Roof Deck Protection Quality Roof Deck Protection provides an extra layer of moisture protection between your roofing material and the roof deck. However, in some jurisdictions, roof assemblies are also required to be fire resistant.
http://www.gaf.com/Roofing/Residential/Products/Roof_Deck_Protection/VersaShield_UL_Fire_Barrier

Wall Flashing



Choose One
Price
Minimum Code
Enhanced Value & Protection
Best Value


Wall Flashing

When properly installed, metal flashings can help accommodate roof, chimney, wall, or structural movements due to settling, expansion, and contraction. Roof flashing works like slates. It overlaps and sheds water. Flashing is always constructed in a system to work with the effect of gravity.

New Exterior Flashings: The new flashing for the walls, cricket, hog valleys and valleys is on the outside of the siding, sealed with elastomerics and polyester fabric, or the use of PVC as a counterflashing with a termination bar or the wall can be notched to fit a metal counterflashing. This can work well if the area is semi-protected and is acceptable to the city where the work is being done.

New Concealed Flashings: In most cases this is the best method, and accepted by all cities.
1. Cut and remove existing siding material from wall.
2. Remove existing flashings, if needed, to allow for installation of new flashings.
3. Install new flashings and fasten.
4. Install new siding material or repair siding where applicable (owner to ‘touch up’ or paint siding).



Existing Skylights


Choose One
Price
10 Year Warranty
20 Year Warranty
Energy Star
Tax Credit
Lifetime Warranty

Existing Skylights

When quality skylights are installed correctly they will outlast the rest of your roof, save money on energy bills, prevent heat from entering, make the inside of your building more enjoyable and enhance value.

WHY SHOULD I REPLACE MY EXISTING SKYLIGHT?

  1. "Broken Skylight"The skylight (not the roof) has leaked in the past.
  2.   The skylight is old.  Some skylights have rubber gaskets that make them waterproof.  The gaskets denigrate over time and leak.
  3. The skylight lens has cracks in it or is broken.
  4. The lens has minute cracking in it that shows the plastic has broken down and is severely damaged.
  5. The operable unit is not working.
  6. The wrong type of skylight was installed.
  7. The moisture barrier has broken down and condensation is in between the top and bottom lens.

J.C. Barry Manufacturing/Skylights
24×24 Operable unit, clear double dome mill frame
24×24 Operable unit, white or obscure glass, bronze frame
24×48 bronze tint dome, bronze frame
24×48 Self Flashing unit, clear dome mill frame
24×48 White dome mill frame
Bronze frame dual pane Skylight
Divided ridge unit (unglazed)
Octagon unit

Ventilation


Choose One
Price
Energy Savings
Tax Credit
Go Green

Ventilation

All insulated attic spaces shall be ventilated with openings to the exterior of not less than 1 sq. ft. of ventilation for every 150 sq. ft. of attic floor space. This must be balanced equally between the eave and the ridge of your home. This is the current code. Please check out the link why you need ventilation below.

Mesh Ridge Vent: These vents have three main flaws. First, they are uneven and hard to install correctly. Second, the mesh clogs with dust particles, preventing air flow after just a few years of service. Third, they have no external baffle which creates positive pressure in your attic, even with a slight breeze. They are prone to failure in strong winds.





Baffled Ridge Vent: Baffled ridge vent is a good balance between look and function. The external baffle creates a negative pressure zone because of the Bernuli effect. They have an attractive appearance, and have been tested for hurricane force winds, with no leaks. They actually pull air out of the attic with wind. These types of vents are covered with slates and have no exposed fasteners.

Eyebrow or O’Hagin vents: These types of vents are the most common ones used in our area. They work through thermal buoyancy: warm air rises. They are not as efficient as Ridge Vent or an attic fan. It takes a lot of these vents to meet code and the manufacturer’s ventilation requirements.



Solar Powered Vent: It is estimated that 90% of homes in North America have inadequate attic ventilation. Why? The code and manufacturers have changed their minimum requirements for attic ventilation. Attic ventilation can impact the longevity of the entire home!

In the summer, an improperly ventilated attic can cause heat to build in excess of 160 degrees. This superheated air eventually penetrates the ceiling insulation into the living area below.

Go green by upgrading to Solar Powered attic fans. A solution to provide energy savings, wind resistance and tax credit, this may be a viable option for you depending upon ventilation calculations and your attic configuration.

Other Attic Vents:  Air Vent makes many different types of attic vents.



Damage that can result from lack of proper attic ventilation includes:

  • “Fried underlayment”, which results in premature aging of your roof system
  • Wood framing warping, cracking or breaking down
  • Damage to siding, exterior or to exterior siding, interior paint, and wallpaper
  • Damage to insulation
  • Higher energy costs to heat and cool the home

A properly ventilated attic can help reduce the load on your air conditioner by moving superheated air out of your attic before it builds up and causes damage. In the winter, various household appliances, bathtubs, showers, and cooking vapors can contribute to excess moisture build-up called vapor drive. Improperly ventilated attics will allow this moisture to collect and cling to the underside of the roof deck. There, it will condense and fall, soaking the attic insulation, causing it to compress and clog, reducing its efficiency.

Proper Attic Ventilation: Proper attic ventilation systems allow a continuous flow of outside air through the attic (see illustration at left), protecting the efficiency of the insulation and helping to lower temperatures in the living space.

It consists of a balance between air intake (at your eaves or soffits) and air exhaust (at or near your roof ridge).

The current code requires a minimum of at least one square foot of attic ventilation (both intake and exhaust) for every 150 square feet of attic space.

For example, if your attic is 900 square feet, you need a total of 6 square feet of ventilation. This amount is generally divided equally between intake and exhaust ventilation (i.e. 3 feet of each), to insure proper air flow through the attic.
  • Starter Course
  • Slates
  • Hip & Ridge
  • Warranty

Starter Course


Choose One
Price
Minimum Code

Starter Course

Each slate product has its own unique starter material to be used required by the particular manufacturer. Therefore, there are no options but to use the recommended starter course provided by the manufacturer.

Slates


Choose One
Price
Minimum Code
Code Plus
Enhanced Value

Class "C"

Class "A"

Class "A"

EuroSlate® is designed to replicate New England style slate with a 1/2″ (nominal) thick chiselled-look butt edge. It is suitable for reroof applications and at a price point between asphalt shingles and premium roofing products such as cedar, slate, metal and other synthetics. It is a great choice for those value-conscious individuals wanting a quality slate-look roof without the high weight and cost. EuroLite Slate® is an Eco Friendly Green Roofing product made from up to 95% recycled materials, the primary ingredient being rubber from recycled tires. A unique manufacturing process incorporating strict quality control methods with durable results.
https://www.eastmanroofing.com/resources/exquisitely-eco-friendly-roofing/
http://www.euroshieldroofing.com/products/eurolite-slate/

SlateTec makes it possible to now have a genuine slate roof on your existing home without adding the extra materials for the structural upgrades that would normally be needed to carry the weight. SlateTec slate is produced by the Greenstone Slate Company of Vermont. Greenstone Slate® is sourced from their 58 quarries and manufactured into roofing slates in their Poultney, Vermont facilities. Greenstone Slate comes with a 100-year slate warranty and is rated as S1 grade — the highest rating available. The S1 rating is assigned by the independent ASTM International building and engineering standards organization. Specifically, ASTM S1 slates have specific properties that provide an expected service life of more than 75 years. In practice, the actual service lifespan for S1 slate can easily surpass 100 years and there are installations known to be still be in service after than 300 years.

http://slatetec.net/homeowners/cedar-shake-roof-replacement/

In order to apply a standard slate roof, the structure must be engineered to handle the weight load of the slate roof. Real Vermont weathering slates will change color as they age with most weathering occurring in the first 1 to 3 years but can continue to change infinitely. Weathering slate provides the natural earth tones of bronze, browns, buffs, cream colors which eventually become a blend on the roof. Colors tend to be on the lighter end of the spectrum with light grays, greens which can provide a more natural “country cottage” or “old world” look to a home.

http://www.vermontslateco.com/choosing-your-slate/

There are other manufacturers of synthetic slate such as DaVinci, CertainTeed Symphony Slate, EcoStar, Inspire Slate, and GAF Tru-Slate..

Hip & Ridge


Choose One
Price
Minimum Code (60 MPH)


Hip & Ridge

Each slate product has its own unique hip & ridge material to be used required by the particular manufacturer. Therefore, there are no options but to use the recommended hip & ridge provided by the manufacturer.

Warranty


Choose One
Price
CertainTeed Self-Adhering Underlayment Material Warranty
Labor & Material Warranty
Material Non Pro-Rated Warranty

50 Year

5 Year

50 Year

50 Year

N/A

20 Year on Interlayment
100 Year on Slate

50 Year

N/A

100 Year on Slate

Slate Warranty

CertainTeed Self-Adhering Underlayment Warranty
http://www.certainteed.com/resources/WaterproofingUnderlaymentsWarranty.pdf

Eurolite Slate Warranty
http://www.euroshieldroofing.com/wp-content/uploads/2014/01/EuroShield-Limited-Lifetime-Warranty-and-Return-Copy-October-2014.pdf

SlateTec Warranty
http://slatetec.net/wp-content/uploads/2013/05/warranty-final.pdf

The Greenstone Slate® 100 Year Limited Warranty

Greenstone Slate Company, Inc. grants a 100-year limited warranty on all slate roofing materials supplied to its customers. All responsibility and liability of honoring this limited warranty is solely that of the above mentioned and covers the following conditions only:
1. Delamination (extensive flaking) of the face of the slate, or
2. Substantial Deterioration (softening) of the body of the slate.
Greenstone Slate Company, Inc. guarantees to the original purchaser only to replace any and all slate pieces that meet the above criteria within the 100-year period from the date of delivery at no charge, for material only, FOB quarry. All costs relating to freight, removal of slate or replacing of slate are not covered by this limited warranty. Neither the quarry nor the distributor is liable for any other direct or consequential damages. Breakage caused by pedestrian traffic, structural fire, vandalism, or by wind, hail and other natural causes is not covered by this limited warranty. Reasonable variations of color occurring in a natural product is considered acceptable and therefore is also excluded in this warranty. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING OF MERCHANTABILITY AND FITNESS. NO EXPRESSED WARRANTIES AND NO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS OTHER THAN THOSE EXPRESSLY SET FORTH ABOVE, SHALL APPLY TO PRODUCTS SOLD BY Greenstone Slate CO., INC. NO WAIVER, ALTERATION OR MODIFICATION OF THE FOREGOING CONDITIONS SHALL BE MADE VALID UNLESS MADE IN WRITING AND SIGNED BY AN EXECUTIVE OFFICER OF Greenstone Slate CO., INC.

  • Insulation
  • New Skylight
  • Gutters

Insulation


Choose One
Price
Current Code
Requirement
Energy Star
Recommendations

Insulation

It is customary to re-insulate your attic during the roof process. Doing so will save a minimum of 20% off of your cooling and heating bills and make it more comfortable. Homes built before 2007 were required to only install R-19. The new code is R-30, though they are leaning to changing this to R-34. Typical investment payback is less than 3 years. Insulated areas do not include non-conditioned spaces.

Conductive Heat:The current minimum standard for our area for attic insulation is R-30, 7 ½”. Some homes have no insulation, which would require the entire R-30 to meet the minimum standard. If your attic insulation is 3 ½”, you have R-12 and would need to add R-19 to meet the minimum requirement. If you have 5 ½” of attic insulation, you have R-19 and need to add R-12 to meet the minimum requirement.

In the winter, if the outside temperature reaches 30 degrees, and you are trying to keep your home at 70 degrees, the temperature difference is 40 degrees (70 – 30), you would need R-19 at a minimum. In the summer, your attic can reach a temperature of 140 degrees. If you are trying to keep the home at 70 degrees, that is a difference of 70 degrees (140 – 70) and you’d need a minimum of R-30 insulation.

Radiant Heat: If you do not have a radiant barrier, then the top 1 inch of your insulation can be 10 degrees – 20 degrees hotter than the air in your attic. The heat is absorbed by the insulation and eventually enters your home. If a radiant barrier is installed on the back of your rafters, 97% of the radiant heat reflects back out and never reaches your insulation.

.
.

Walls/Floors: These areas, if not insulated, allow the transfer of heat and cold.

Insulation Check Sheet:

You might be surprised how many people don’t know they’re sending money through their roof.

A standard single family home going from an existing R-12 to R-30 will see a minimum reduction of 20% on their cooling and heating bill. If your power bill averages $100 a month, about half of that is for cooling and heating, typically. A 20% savings would equate to a $20 reduction on your bill each month, per $100 of every cost.

About 78% of homeowners have not added any insulation to their attic; in part because they believe their home already has enough.

However, 80% of homes built before 1980 are not insulated to correct standards. Even newer homes may not be as energy-efficient as you think. Current codes are only the minimum insulation requirements for new construction – not the amount recommended to optimize energy efficiency.

Overall, about 60 million homes built before 1980 are under-insulated, costing Americans $8.2 billion each year. Simply insulating existing homes to current standards would save 800 trillion BTUs (that’s 76 supertankers of oil) each year.

Higher Resale Value: An energy-efficient home appeals to buyer’s financial and environmental interests.

Research shows that 71% of homebuyers want a home that reduces their overall impact on the environment. And 96% of homebuyers consider energy efficiency when buying a new home.

A Positive Impact on the Environment: CertainTeed insulation products save many times the energy used to make it in the first year alone. And they continue to help conserve energy year after year without consuming any additional resources.

The products CertainTeed sells each year are responsible for the prevention of more than 1 billion tons of greenhouse gas emissions. This equals the emissions of 200 million passenger cars or the use of 2 billion barrels of oil.

Responsible Use of Resources: Many CertainTeed products are made with renewable resources, recycled materials or the byproducts of other production processes. CertainTeed Fiberglas insulation is made of plentiful sand and recycled glass.

Loose fill insulation, also called “blown-in” insulation, is made of virgin white fiber glass insulation. It is used in new construction and in existing homes, typically in hard-to-reach areas.

  • It will not settle or lose its energy-saving abilities over time.
  • It does not require the addition of fire-retardant chemicals that can promote corrosion of pipes or wires.
  • It will not rot or decay, support fungus or mold growth, or provide sustenance for insects or vermin.
  • CertainTeed Loose Fill Insulation Brochure

New Skylight


Choose One
Price
Energy Star
Tax Credit
Energy Savings
Enhanced Value

New Skylights

When quality skylights are installed correctly they will outlast the rest of your roof, save money on energy bills, prevent heat from entering, make the inside of your building more enjoyable and enhance value. Home and Gardens Magazine states that “adding a skylight is the single best return on investment in remodeling today”.

J.C. Barry Manufacturing/Skylights
24×24 Operable unit, clear double dome mill frame
24×24 Operable unit, white or obscure glass, bronze frame
24×48 bronze tint dome, bronze frame
24×48 Self Flashing unit, clear dome mill frame
24×48 White dome mill frame
Bronze frame dual pane Skylight
Divided ridge unit (unglazed)
Octagon unit

Gutters


Choose One
Price
Water Control
Maximum Protection
Enhanced Value
ZERO Maintenance Required

Gutters are usually replaced during the reroof process. Gutters help prevent foundation decay, flower bed damage and exterior equipment damage. Gutters are perfect for collecting rain water for lawn use, preventing waterfalls on walkways and redirecting rainwater away from the building.

Gutters

Gutters and downspouts are necessary to channel water away from the foundation of the building to prevent damage. Factors that must be considered in the design of the roof drainage system are:  the area to be drained, size of the gutters, downspouts and outlets, the slope of the roof, type of building, and its appearance.  The design capacity for the roof drainage system depends on the quantity of water to be handled.  The quantity of water in turn depends on the roof area, roof slope, and rainfall intensity.  Rainfall intensity is usually stated in inches per hour for a 5 minute duration based on U.S. Weather Bureau records.

We use pre-painted, steel or aluminum seamless gutters that are designed and assembled onsite to custom fit your roof. We also use paintable bonderized gutters and copper gutters for different styles and options.

Custom-built Metals, Award Metals, and Spectra Gutters and Accessories represent the finest rain removal system made. With a superior gutter design and decades of proven experience, they continue to set industry standards. They are a beautiful, durable solution, engineered to last and last on your home.

  • Seamless Design: No leaks: Our team brings our roll-forming machine to you. We create each gutter to the exact length.
  • Our gutters are installed behind the drip edge or wing to allow water to flow directly into the gutter and not behind it.
  • All components included, no hidden costs: We include all parts required to install a complete gutter system.
  • We use pre-mounted, hidden hangers to anchor our seamless gutters. These: Hold more weight; won’t back out; have a smooth finish; and a clean look.
  • All corners of your gutter are custom-made onsite or factory-mitered to fit perfectly.
  • We use downspouts to ensure that water is being channeled away from your home and to help prevent gutter clogging: 2” x 3”; We use a variety of gutter sizes and designs.
  • We use anti-corrosive screws, hangers, and gutters that will not rust.
  • All Aluminum or Steel: 16 colors available; Same Price
  • Ten year workmanship warranty

SEAMLESS RAIN GUTTER PROFILES

Below is a sample of Gutter Profiles that may be available in your area from contractors. Some gutter profiles are only available in certain regions, so please contact your local contractors for information.

Available Gutter Profiles

“K” or “O/G” Style Seamless Gutter in 5″ & 6″

  • Standard Material: Aluminum (.027), Copper (16 oz.), Steel (26 Ga.)
  • Finish: Dura Coat XT-10
  • Warranty: Lifetime Finish Warranty

Half Round Style Gutter in 5″ & 6″

  • Standard Material: Aluminum (.027), Copper (16 oz.), Steel (26 Ga.)
  • Finish: Dura Coat XT-10
  • Warranty: Lifetime Finish Warranty

Commercial Style Seamless Gutter in 6″

  • Standard Material: Aluminum (.027), Copper (16 oz.), Steel (26 Ga.)
  • Finish: Dura Coat XT-10
  • Warranty: Lifetime Finish Warranty

Super or Deep Fascia Style Seamless Gutter in 7 1/4″

  • Standard Material: Copper (16 oz.), Steel (26 Ga.)
  • Finish: Dura Coat XT-10
  • Warranty: Lifetime Finish Warranty
.
.

Fascia Style Seamless Gutter in 5 1/2″

  • Standard Material: Aluminum (.027), Copper (16 oz.), Steel (26 Ga.)
  • Finish: Dura Coat XT-10
  • Warranty: Lifetime Finish Warranty
.

https://www.custombiltmetals.com/_pdfs/color_charts/Rain_Gutter_Color_Chart.pdf

GUTTER – DOWNSPOUT – END CAPS – ELBOWS – ACCESSORIES

Fascia Gutter Plain Face
5-1/4″
or 7-1/4″
With or Without Wing

Galvanized or Bonderized

Copper
10′ only
Fascia Gutter Deco Face
5-1/4″
5 Rib or 7-1/4″ 7 Rib
Galvanized or Bonderized
Tile Gutter Plain Face
7-1/4″

Galvanized or Bonderized
Tile Gutter Deco Face
7-1/4″
Galvanized or Bonderized
Fascia Gutter Curved Face
5-1/4″
Standard
7-1/4″ Standard or Tile

Galvanized or Bonderized

Copper
10′ only
Half Round Double Bead Gutter

10′ lengths 4″,
5″, 6″

20′ lengths in 5″ or 6″
Galvanized, Bonderzied or Copper
Half Round Single Bead Gutter
4″, 5″ or 6″
in 10′

Galvanized, Bonderzied or Copper
Half Round Single Bead – 1″ Wing

4″,
5″, 6″



4″, 5″ in 10′ only
6″ in 10′ or 20′
Galvanized, Bonderzied or Copper
Style Gutter With No Wing
4″
Copper 10″ only
5″
Copper in 10′ or 20′

4″ NA in Bonderized

4″ NA in Bonderized

Galvanized, Bonderzied or Copper
K” Style Gutter with 1″ Wing
4″
or 6″ Copper 10″ only
5K or 6K
Copper in 10′ or 20′
Galvanized, Bonderzied or Copper

http://www.awardmetals.com/product_drainage.htm
